Tilt Wall Mounts

The SmartMount™ line of Universal Tilt Wall Mounts are professional-grade solutions for applications requiring tilt to adjust viewing angle. Five models cover the widest range of flat panel screen sizes, from 10″ to 63″. Models ship with your choice of either standard (Phillips head) fasteners or theft -deterrent security fasteners packed in a conveniently sorted bag.

  • Smooth, continuous, one-touch tilt
  • Knob incorporated for easy
  • tilt tension adjustment
  • Integrated security
  • Durable, all-steel construction
  • UL Listed
  • VESA Compliant

In addition to universal models, the SmartMount™ line also offers dedicated (screen-specific) models. Dedicated models come in black, include both security and standard (Phillips head) fasteners and include only the hardware needed for a specific flat panel screen model. For more information on dedicated SmartMount models contact TB&A.

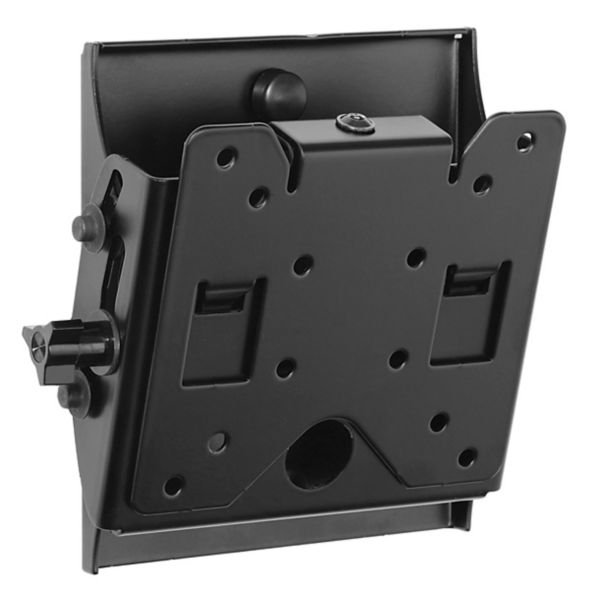

Model: ST630P, ST630
Max Load: 80 lbs
(36.28 kg)

Fasteners Options
Black, Standard Phillips Head Fasteners
Black, Integrated Security Fasteners

Universal Tilt Wall Mount For 10″ to 29″ Televisions

Click here to download PDF Spec Sheet (168k)

Features

  • Mounts to single wood stud, concrete, cinder block or metal stud (with accessory metal stud fasteners)
  • Universal mount fits virtually any 10″ to 29″ flat panel screen
  • Screen adapter plate compatible with VESA 75mm and 100mm
  • Comes in silver or black
  • One-touch tilt allows tilt adjustment of +15/-5 degrees without the use of tools
  • Tilt can be tightened in place if needed
  • Screen adapter plate simply hooks onto the wall plate for quick and easy installation
  • Includes hardware for installation to single wood stud, concrete and cinder block

Components & Ordering: 1) To verify your screen is compatible, visit  www.peerless-av.com and use the “Mount Finder” feature. 2) For metal stud installations contact TB&A to order accessory metal stud fasteners (ACC215) 3) Accessory shelves available (PM600, PM610)


Model: ST632P, ST632
Max Load: 115 lbs

Universal Tilt Wall Mount for 22″ to 43″ Televisions

Click here to download PDF Spec Sheet (176k)

The SmartMount® Universal Tilt Wall Mount for 22″-43″ screens offers 5 degrees upward and 15 degrees downward tilt. Tilt adjustment is very smooth and can be done easily with no tools required, or the tilt can be tightened to restrict movement of the screen. It ships with a VESA 75mm/100mm and an additional plate for larger screens using 100mm x 200mm and 200mm x 200mm mounting patterns. It has a weight load capacity of 115 lbs on a single wood stud, concrete or cinder block and uses one pre-installed fastener point for safety/security. Metal stud mounting requires an accessory metal stud wall fastener pack (ACC215).

Components & Ordering: Product ships complete with wall bracket, tilt bracket and screen adapter plate. 1) To verify your screen is compatible, visit  www.peerless-av.com and use the “Mount Finder” feature. All models are fully kitted. 2) Wood stud: No additional fasteners required if mounting direct to wood stud. 3) Metal stud: No additional fasteners required if mounting direct to metal stud. 4)Concrete wall: No additional fasteners required if mounting direct to concrete wall.


Model: ST635P, ST635
Max Load: 125 lbs

Universal Tilt Wall Mount For 13″ to 37″ Televisions

Click here to download PDF Spec Sheet (172k)

  • Mounts to single wood stud, concrete, cinder block or metal stud (with accessory metal stud fasteners)
  • Universal mount fits virtually any 13″ to 37″ flat panel screen
  • Screen adapter brackets included
  • compatible with VESA 75mm, 100mm, 200mm and 200mm x 200mm mounting hole patterns
  • Comes in silver or black
  • One-touch tilt allows tilt adjustment of +15/-5 degrees without the use of tools
  • Tilt can be tightened in place if needed
  • Screen adapter brackets simply hook onto the wall plate for quick and easy installation
  • Includes hardware for installation to single wood stud, concrete and cinder block

Components & Ordering:  1) To verify your screen is compatible, visit  www.peerless-av.com and use the “Mount Finder” feature. 2) For metal stud installations contact TB&A to order accessory metal stud fasteners (ACC215). 3) Accessory shelves available (PM600, PM610)


Model: ST640P, ST640
Max Load: 150 lbs
 (68.03 kg)

Universal Tilt Wall Mount For 32″ to 50″ Televisions

Click here to download PDF Spec Sheet (172k)

  • Mounts to single wood stud,concrete or to single metal stud (with accessory metal stud fasteners)
  • For virtually all 32″ to 50″ flat panel screens
  • Universal brackets easily hook onto the mount bars for fast and easy installation
  • Comes in silver or black
  • Adjustable tilt +15/-5 degree without the use of tools
  • Self-balancing, one-touch tilt for effortless adjustment
  • Tilt can be tightened in place if needed
  • Up to 6″ of horizontal adjustment after the screen is mounted
  • Includes hardware for single wood stud, concrete and cinder block
  • Comes with Peerless’ complete Sorted–For-You™ baffle pack with all screen hardware included

Components & Ordering:  1) To verify your screen is compatible, visit  www.peerless-av.com and use the “Mount Finder” feature. 2) For metal stud installations contact TB&A to order accessory metal stud fasteners (ACC215). 3) Accessory shelves available (PM600, PM610)

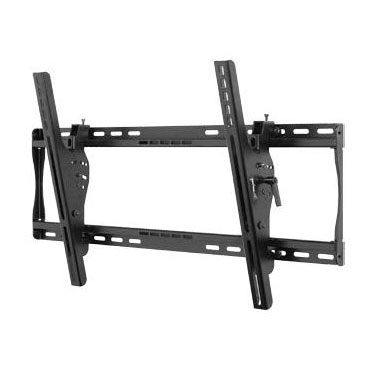

Model: ST650P, ST650
Max Load: 150 lbs
 (68.03 kg)

Universal Tilt Wall Mount For 39″ to 75″ Televisions

Click here to download PDF Spec Sheet (172k)

  • Mounts to one or two wood studs, concrete, cinder block or to two metal studs with accessory metal stud fasteners)
  • For virtually all 39″to 75″ flat panel screens
  • Universal brackets easily hook onto the mount bars for fast and easy installation
  • Includes additional brackets to accommodate screens with a built-in curve or component box on the back
  • Comes in silver or black
  • Adjustable tilt +15/-5 degree without the use of tools
  • Self-balancing, one-touch tilt for effortless adjustment
  • Tilt can be tightened in place if needed
  • Up to 12″ of horizontal adjustment after the screen is mounted
  • Includes hardware for wood studs, concrete and cinder block
  • Comes with Peerless’ complete Sorted–For-You™ baffle pack with all screen hardware included
  • Screen-specific models also available

Components & Ordering:  1) To verify your screen is compatible, visit  www.peerless-av.com and use the “Mount Finder” feature. 2) For metal stud installations contact TB&A to order accessory metal stud fasteners (ACC415). 3) Accessory shelves available (PM600, PM610)

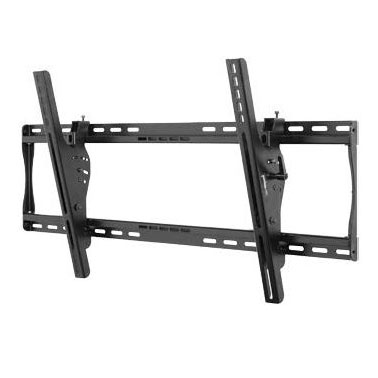

Model: ST660P, ST660
Max Load: 200 lbs
 (90.71 kg)

Universal Tilt Wall Mount For 39″ to 80″ Television

Click here to download PDF Spec Sheet (172k)

  • Mounts to one or two wood studs, concrete, cinder block, or to two metal studs (with accessory metal stud fasteners)
  • For virtually all 39″ to 80″ flat panel screens
  • Universal brackets easily hook onto the mount bars for fast installation
  • Includes additional brackets to accommodate screens with a built-in curve or component box on the back
  • Comes in silver or black
  • Adjustable tilt +15/-5 degree without the use of tools
  • Self-balancing, one-touch tilt for effortless adjustment
  • Tilt can be tightened in place if needed
  • Up to 12″ of horizontal adjustment after the screen is mounted
  • Includes hardware for wood studs, concrete and cinder block
  • Comes with Peerless’ complete Sorted–For-You™ baffle pack with all screen hardware included
  • Screen-specific models also available

Components & Ordering:  1) To verify your screen is compatible, visit  www.peerless-av.com and use the “Mount Finder” feature. 2) For metal stud installations contact TB&A to order accessory metal stud fasteners (ACC415). 3) Accessory shelves available (PM600, PM610)
